ST 公司的LYPR540AH 是MEMS运动传感器,三轴模拟输出陀螺仪, 具有偏航,倾斜和滚动模拟陀螺仪特性,三轴有单独的输出通路. LYPR540AH提供放大(±400 dps满刻度)和不放大(±1600 dps满刻度)输出,-3dB带宽检测速率高达140 Hz，模拟工作电压2.7 V 到 3.6 V,主要用在运动和人机接口,健身设备,遥控制器,工业和机器人,个人导航设备.本文介绍LYPR540AH主要特性,方框图和应用电路图.

    LYPR540AH: MEMS motion sensor: 3 axis analog output gyroscope

    The LYPR540AH is a three axis yaw, pitch and roll analog gyroscope featuring three separate analog output channels.

    LYPR540AH provides amplified (±400 dps full scale) and not amplified (±1600 dps full scale) outputs for each sensible axis available at the same time through dedicated pins, and is capable of detecting rates with a -3 dB bandwidth up to 140 Hz.

    ST 3 axis gyroscope family leverages on robust and mature manufacturing process already used for the production of hundreds million micromachined accelerometers with excellent acceptance from the market.

    Sensing element is manufactured using specialized micromachining processes, while the IC interfaces are realized using a CMOS technology that allows to design a dedicated circuit which is trimmed to better match the sensing element characteristics.

    The LYPR540AH is available in plastic Land Grid Array (LGA) package. Several years ago ST pioneered successfully the usage of this package for accelerometers. Today ST has the widest manufacturing capability and strongest expertise in the world for production of sensors in plastic LGA package.

    LYPR540AH 主要特性:

    ■ Analog supply voltage 2.7 V to 3.6 V

    ■ Wide extended operating temperature range (-40℃ to 85℃)

    ■ 3 indipendent angular rate channels

    ■ ±400 dps and ±1600 dps full-scale

    ■ High shock survivability

    ■ Embedded self-test

    ■ ECOPACK? RoHS and “Green” compliant

    LYPR540AH 应用:

    ■ Motion and man machine interface

    ■ Gaming and virtual reality input devices

    ■ Fitness and wellness

    ■ Pointing device and remote controllers

    ■ Industrial and robotics

    ■ Personal navigation devices

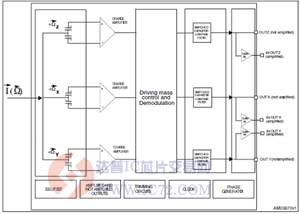

    图1.LYPR540AH 方框图

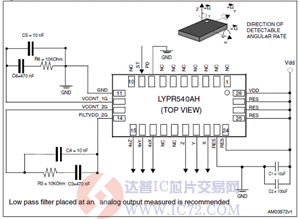

    图2.LYPR540AH 应用电路图
