  • Fairchild FAN9612双BCM BFC控制器方案
    http://www.ic72.com 发布时间:2009/6/24 16:37:51
    Fairchild 公司的FAN9612是隔行扫描的双临界工作模式(BCM) BFC控制器,采用并行连接的180度反相输出进行控制,控制功率从300W到800W.和连续导通模式(CCM)技术不同,BCM使得升压二极管在零电流开关,因此降低了成本和损耗.可应用于100-1000W离线电源,大屏幕LCD-TV,PDP-TV,RP-TV的电源以及高端台式计算机和服输器点名源,获得80+证书的设备.本文介绍了FAN9612的主要特性,方框图,典型应用电路图以及采用FAN9612隔行扫描的BCM PFC电路图.


    FAN9612: Interleaved Dual BCM PFC Controller
    The FAN9612 Interleaved Dual Boundary-Conduction-Mode (BCM)
    Power-Factor-Correction Controller operates two parallel-connected boost power trains 180º out of phase. Interleaving extends the maximum practical power level of the control technique from about 300W to greater than 800W. Unlike the continuous conduction mode (CCM) technique often used at higher power levels, BCM offers inherent zero-current switching of the boost diodes (no reverse-recovery losses), which permits the use of less expensive diodes without sacrificing efficiency. Furthermore, the input and output filters can be made smaller due to ripple current cancellation and effective doubling of the switching frequency.

    The converters operate with variable frequency which is a function of the load and the instantaneous input / output voltages. The switching frequency is limited between 18kHz and 600kHz. The Pulse Width Modulators implement voltage-mode control with input
    voltage feed forward. When configured for PFC applications, the slow voltage regulation loop results in constant on-time operation within a line cycle. This PWM method combined with the BCM operation of the boost converters provides automatic power factor correction.

    The FAN9612 offers bias UVLO, input brown-out, input over-voltage, over-current, open feedback, overtemperature, output over-voltage and redundant latching over-voltage protections. Furthermore, the converters’ output power is limited independently of the input RMS voltage. Synchronization between the power stages is maintained under all operating conditions. The FAN9612 is available in Lead(Pb)-Free 16-lead SOIC package.

    FAN9612主要特性:
    Low Total Harmonic Distortion, High Power Factor
    180° Out of Phase Synchronization
    Automatic Phase Disable at Light Load
    1.8A Sink, 0.8A Source, High Current Gate Drivers
    Trans-conductance (gM) Error Amplifier
    Voltage-Mode Control with (VIN)2 Feed Forward
    Closed-Loop Soft-Start with User-Programmable Soft-Start Time for Reduced Overshoot
    Minimum Restart Timer Frequency to Avoid Audible Noise
    Maximum Switching Frequency Clamp
    Brown-Out Protection with Soft-Recovery
    Non-Latching OVP on FB pin and Latching Second Level Protection on OVP Pin
    Open Feedback Protection
    Over-Current & Power-Limit Protection for Each Phase
    Low Start-Up Current of 80-μA Typical
    Works with DC, 50Hz to 400Hz ac Inputs

    FAN9612应用:
    100-1000W Off-line Power Supplies
    Large Screen LCD-TV, PDP-TV, RP-TV Power
    High-End Desktop PC and Server Power Supplies
    80-PLUS Certified Equipment

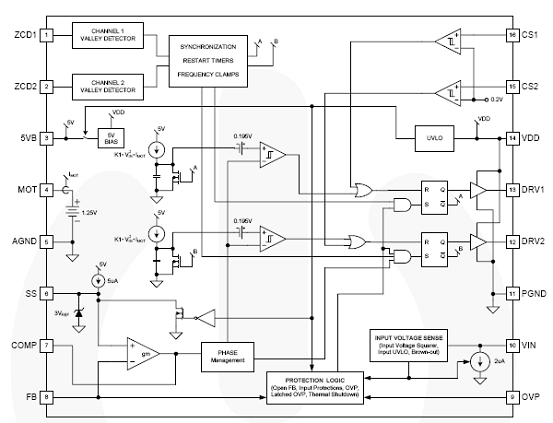

    图1.FAN9612方框图

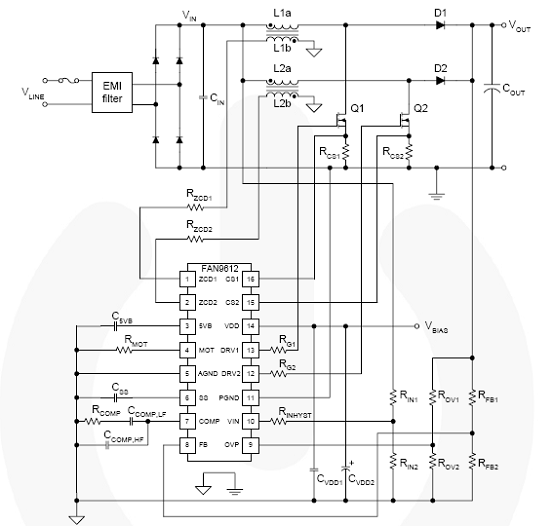

    图2.FAN9612典型应用电路图

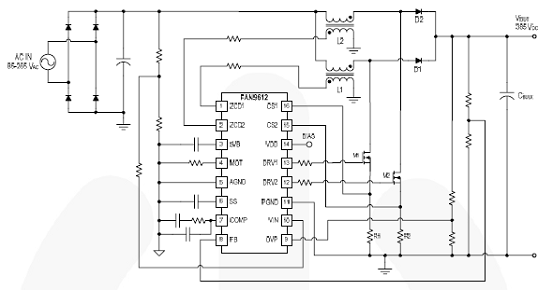

    图3.采用FAN9612隔行扫描的BCM PFC电路图
