Powerint 公司的
150W街灯LED照明方案是采用HiperPLC PLC810PG 器件.该器件集成了PFC和LLC控制器,140VAC时满负载PFC效率大于95%,而满负载LLC效率大于95%,输入电压高达230VAC,功率
150W,主要用作街灯LED照明供电.本文介绍了参考设计DER 212的主要特性,详细电路图以及PCB布局图和所用材料清单(BOM).
150 W
Power Factor Corrected LLC
Power Supply Using HiperPLC (PLC810PG)
Summary and Features
Integrated PFC and LLC controller
Continuous mode PFC using small low-cost ferrite
core and magnet wire
Frequency and Phase locked PFC and LLC for ripple cancellation in
bulk capacitor for reduced ripple current, reduced
bulk capacitor size and reduced EMI
filter cost
Tight LLC duty-cycle matching
Tight LLC dead-time control
>95% full load PFC efficiency at 140 VAC using conventional ultrafast rectifier
>95% full load LLC efficiency
>92% full load
system efficiency
This engineering report describes a 150 W
reference design power supply for 230 VAC input LED street
lights and also serves as a general purpose evaluation
board for the PLC810PG
The design is based on the PLC810PG controller IC which integrates both continuous current mode (CCM) boost PFC and resonant half-bridge (LLC) control functions together with high-side and low side drivers for the LLC stage MOSFETs. To allow optimum design of the LLC transformer (T1) for high efficiency (high k factor–the ratio of parallel to series inductance) the design operates in burst mode at zero load. The supply is thus protected against output overvoltage at low/zero load, but it will not deliver a steady output voltage at zero load. A practical LED street light power supply design that includes an auxiliary output winding to power the LED driver circuitry may not have this limitation.
DER-212 demonstrates a design using the commonly employed single transformer and resonant inductor magnetic component (integrated magnetics) for the LLC stage (common in display applications). However, the PLC810 may as easily be used with separated transformer and resonating inductor. PI design materials support both approaches.

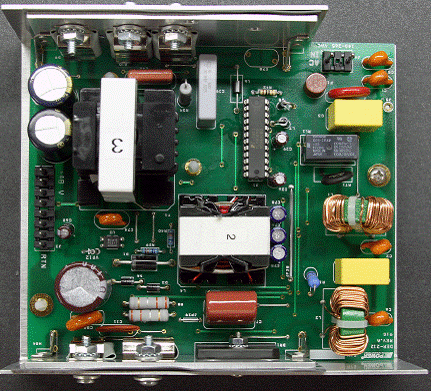

图1.参考设计DER-212 外形图(顶视图)

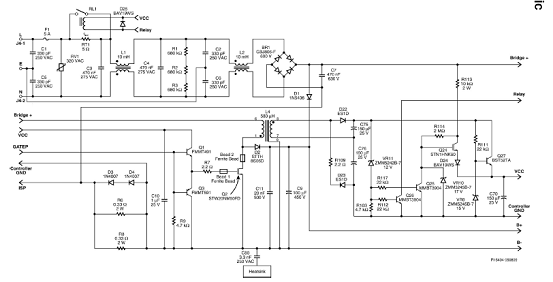

图2.PLC810PG LED街灯照明电路图(输入电路和PFC功率级)

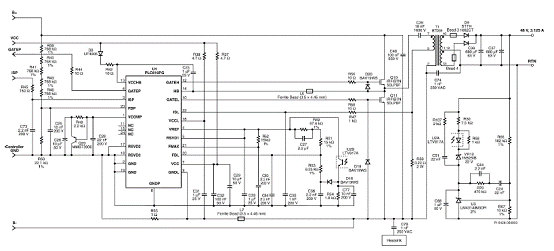

图3.PLC810PG LED街灯照明电路图(PFC电路控制输入电路和LLC级)

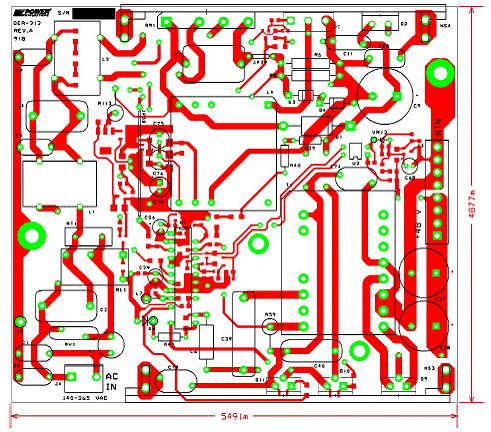

图4.PCB布局(顶层)

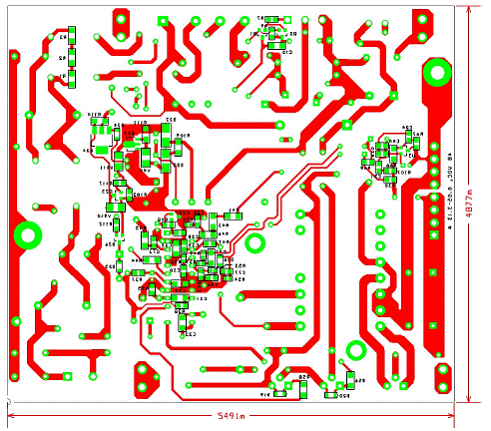

图5.PCB布局(底层)

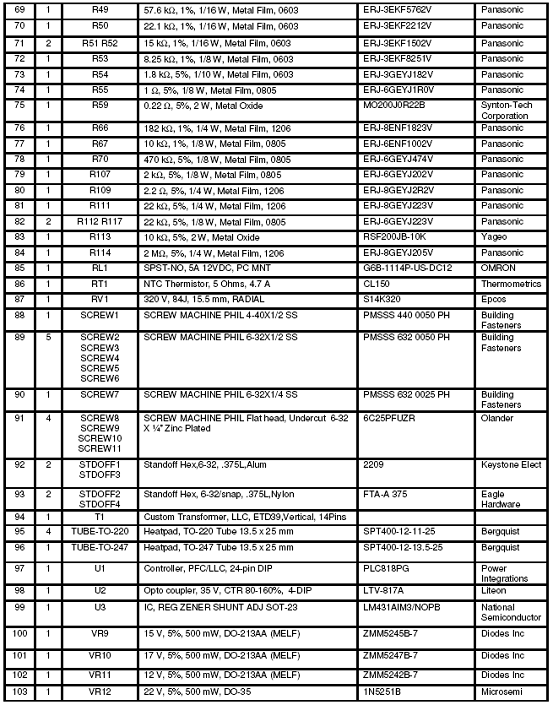

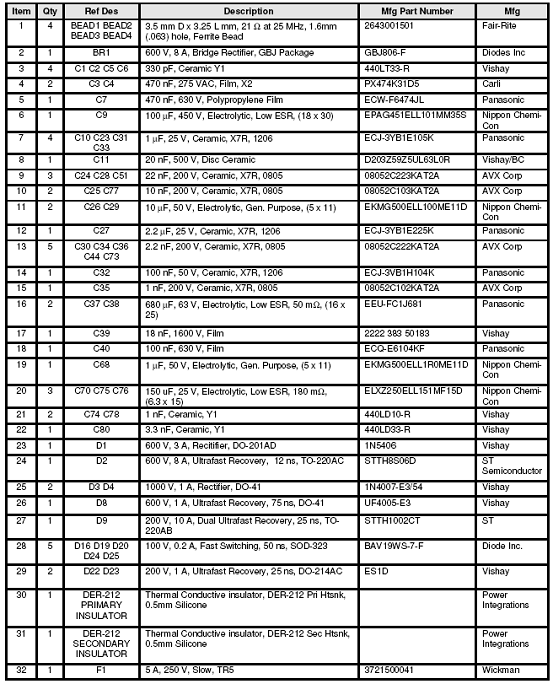

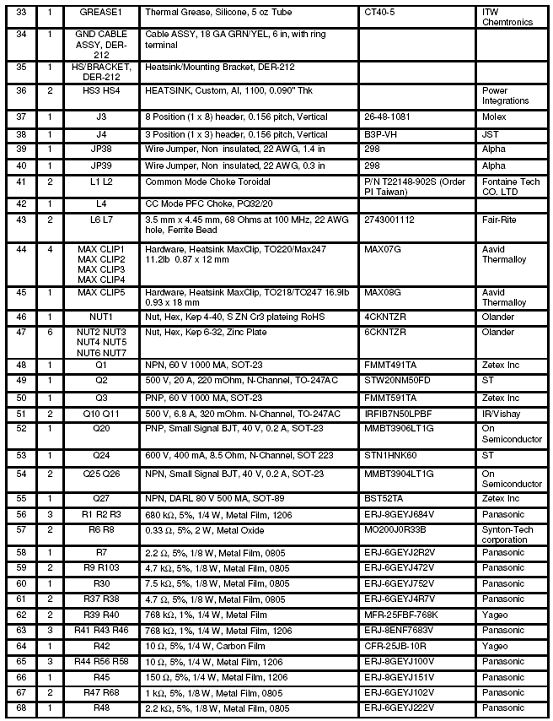

参考设计材料清单:
