IR 公司的IRAUDAMP8是采用IRS2093M D类音频控制器和DirectFET MOSFET IRF6665的 4路120W D类音频功率放大器,包括了所有所需的电源,每路能向4欧姆提供120W,效率为90%.在60W和4欧姆时THD+N为0.012%,具有多种保护特性,包括高边和低边的过流保护(OCP),欠压保护(UVP)以及过压保护,超温保护(OTP),可用在AV接收器,家庭影院系统,有源扬声器,音乐仪表放大器,汽车电子放大器以及迷你立体声音响等.本文介绍了IRAUDAMP8的主要特性和指标, D类放大器简化方框图和电路图以及放大器所用电子元件和机械元件清单(BOM).
IRAUDAMP8:
120W x 4 Channel Class D Audio Power Amplifier Using the IRS2093M and IRF6665

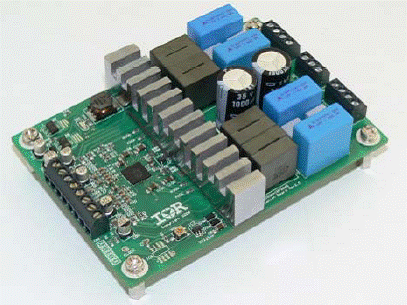

图1. IRAUDAMP8参考设计完形图
The IRAUDAMP8 Demo board is a reference design which uses only one IC (IRS2093M) to derive appropriate input signals, amplify the audio input, and achieve a four-channel 120 W/ch (4Ω) half-bridge Class D audio power amplifier. The reference design demonstrates how to use the IRS2093M Class D audio controller and gate driver IC, implement protection circuits, and design an optimum PCB layout using IRF6665 DirectFET MOSFETs. The reference design contains all the required housekeeping power supplies for ease of use. The four-channel design is scalable, for power and number of channels.
The IRAUDAMP8 features a 4CH self-oscillating type PWM modulator for the smallest space, highest performance and robust design. This topology represents an analog version of a secondorder sigma-delta modulation having a Class D switching stage inside the loop. The benefit of the sigma-delta modulation, in comparison to the carrier-signal based modulation, is that all the error in the audible frequency range is shifted to the inaudible upper-frequency range by nature of its operation. Also, sigma-delta modulation allows a designer to apply a sufficient amount of error correction.
IRAUDAMP8应用:
AV receivers
Home theater systems
Mini component stereos
Powered speakers
Sub-woofers
Musical Instrument amplifiers
Automotive after market amplifiers
IRAUDAMP8主要特性:
Output Power: 120W x 4 channels,
Residual Noise: 200V, IHF-A weighted, AES-17 filter
Distortion: 0.012% THD+N @ 60W, 4Ω
Efficiency: 90% @ 120W, 4Ω, single-channel driven, Class D stage
Multiple Protection Features: Over-current protection (OCP), high side and low side
Over-voltage protection (OVP),
Under-voltage protection (UVP), high side and low side
Over-temperature protection (OTP)
PWM Modulator: Self-oscillating half-bridge topology with optional clock synchronization
IRAUDAMP8主要指标:
General Test Conditions (unless otherwise noted) Notes / Conditions
Supply Voltages ±35V
Load Impedance 4Ω
Self-Oscillating Frequency 400kHz No input signal, Adjustable
Gain Setting 26.5dB 1Vrms input yields rated power
Electrical Data Typical Notes / Conditions
IR Devices Used IRS2093M Audio Controller and Gate-Driver,
IRF6665 DirectFET MOSFETs
Modulator Self-oscillating, second order sigma-delta modulation, analog input
Power Supply Range ± 25V to ±35V Bipolar power supply
Output Power CH1-4: (1% THD+N) 120W 1kHz
Output Power CH1-4: (10% THD+N) 170W 1kHz
Rated Load Impedance 8-4Ω Resistive load
Standby Supply Current ±100mA No input signal
Total Idle Power Consumption 7W No input signal
Channel Efficiency 90% Single-channel driven,
120W, Class D stage

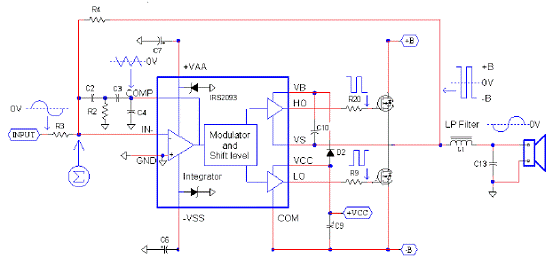

图2.IRAUDAMP8 D类放大器简化方框图

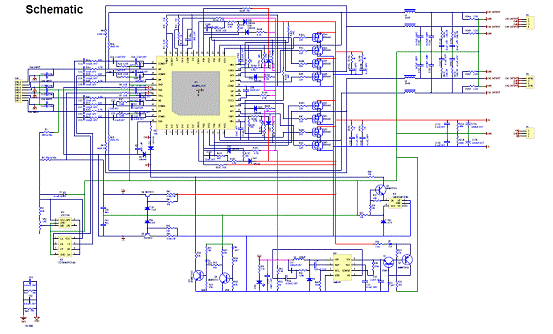

图3.IRAUDAMP8 D类放大器系统级框图

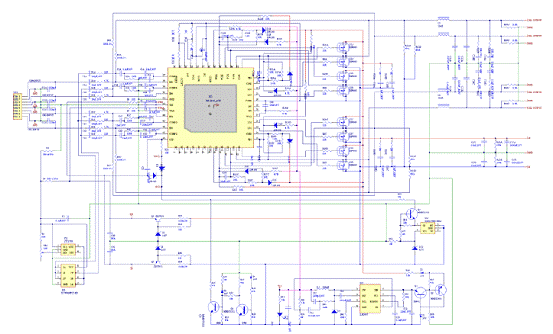

图4.IRAUDAMP8 D类放大器电路图

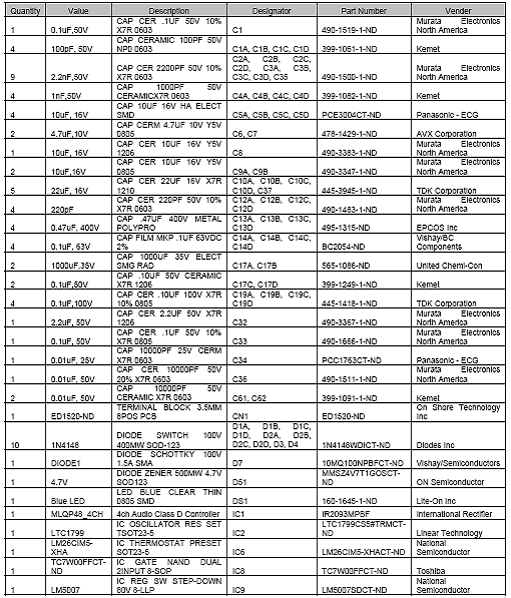

IRAUDAMP8 D类放大器电元件清单(BOM):

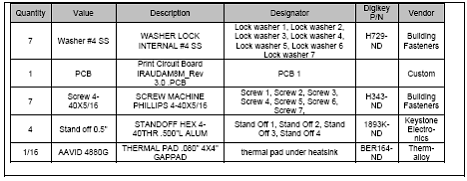

IRAUDAMP8 D类放大器机械零件清单:
