TI CC2530系统级芯片ZigBee应用方案

http://www.ic72.com 发布时间：2009/5/13 16:49:58

TI 公司的CC2530是真正的系统级芯片(SoC),适用于2.4GHz IEEE 802.15.4,ZigBee和RF4CE应用. CC2530包括了极好性能的一流RF收发器,工业标准增强性8051 MCU,系统中可编程的闪存,8KB RAM以及许多其它功能强大的特性,可广泛应用在2.4-GHz IEEE 802.15.4 系统, RF4CE遥控制系统,ZigBee系统,家庭/建筑物自动化,照明系统,工业控制和监视,低功耗无线传感器网络,消费类电子和卫生保健.本文介绍了CC2530的主要特性,方框图以及应用电路图和所用元件表. 此外还介绍了CC2530EMK评估模块套件的主要特性和详细电路图.

A True System-on-Chip Solution for 2.4-GHz IEEE 802.15.4 and ZigBee Applications

The CC2530 is a true system-on-chip (SoC) solution for IEEE 802.15.4, Zigbee and RF4CE applications. It enables robust network nodes to be built with very low total bill-of-material costs. The CC2530 combines the excellent performance of a leading RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8-KB RAM, and many other powerful features. The CC2530 comes in four different flash versions: CC2530F32/64/128/256, with 32/64/128/256 KB of flash memory, respectively. The CC2530 has various operating modes, making it highly suited for systems where ultralow power consumption is required. Short transition times between operating modes further ensure low energy consumption.

Combined with the industry-leading and golden-unit-status ZigBee protocol stack (Z-Stack) from Texas Instruments, the CC2530F256 provides a robust and complete ZigBee solution.

Combined with the golden-unit-status RemoTI stack from Texas Instruments, the CC2530F64 and higher provide a robust and complete ZigBee RF4CE remote-control solution.

CC2530主要特性:

RF/Layout

2.4-GHz IEEE 802.15.4 Compliant RF Transceiver

Excellent Receiver Sensitivity and Robustness to Interference

Programmable Output Power Up to 4.5 dBm

Very Few External Components

Only a Single Crystal Needed for Mesh Network Systems

6-mm × 6-mm QFN40 Package

Suitable for Systems Targeting Compliance With Worldwide Radio-Frequency Regulations: ETSI EN 300 328 and EN 300 440 (Europe), FCC CFR47 Part 15 (US) and ARIB STD-T-66 (Japan)

Low Power

Active-Mode RX (CPU Idle): 24 mA

Active Mode TX at 1 dBm (CPU Idle): 29 mA

Power Mode 1 (4 μs Wake-Up): 0.2 mA

Power Mode 2 (Sleep Timer Running): 1 μA

Power Mode 3 (External Interrupts): 0.4 μA

Wide Supply-Voltage Range (2 V-3.6 V)

Microcontroller

High-Performance and Low-Power 8051 Microcontroller Core With Code Prefetch 32-, 64-, 128-, or 256-KB In-System-Programmable Flash

8-KB RAM With Retention in All Power Modes

Hardware Debug Support

Peripherals

Powerful Five-Channel DMA

IEEE 802.15.4 MAC Timer, General-Purpose Timers (One 16-Bit, Two 8-Bit)

IR Generation Circuitry

32-kHz Sleep Timer With Capture

CSMA/CA Hardware Support

Accurate Digital RSSI/LQI Support

Battery Monitor and Temperature Sensor

12-Bit ADC With Eight Channels and Configurable Resolution

AES Security Coprocessor

Two Powerful USARTs With Support for Several Serial Protocols

21 General-Purpose I/O Pins (19× 4 mA, 2× 20 mA)

Watchdog Timer

Development Tools

CC2530 Development Kit

CC2530 ZigBee Development Kit

CC2530 RemoTI Development Kit for RF4CE

SmartRF Software

Packet Sniffer

IAR Embedded Workbench Available

CC2530应用:

2.4-GHz IEEE 802.15.4 Systems

RF4CE Remote Control Systems (64-KB Flash and Higher)

ZigBee Systems (256-KB Flash)

Home/Building Automation

Lighting Systems

Industrial Control and Monitoring

Low-Power Wireless Sensor Networks

Consumer Electronics

Health Care

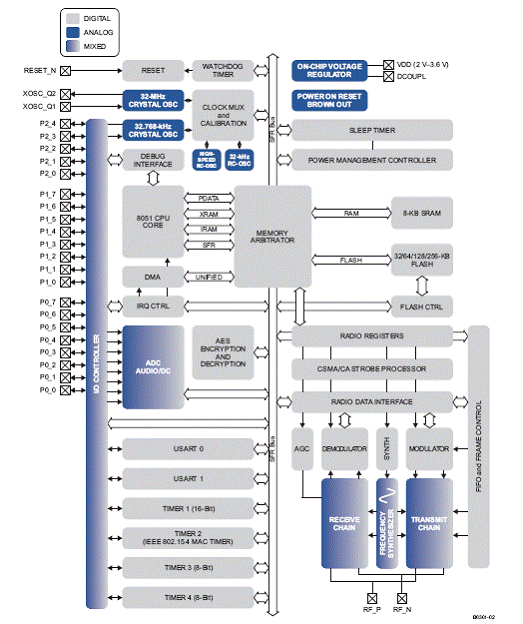

图1.CC2530方框图

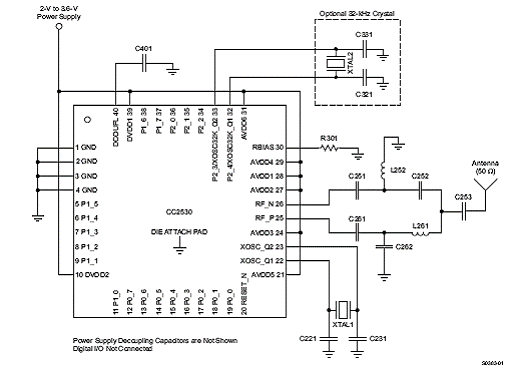

图2.CC2530应用电路

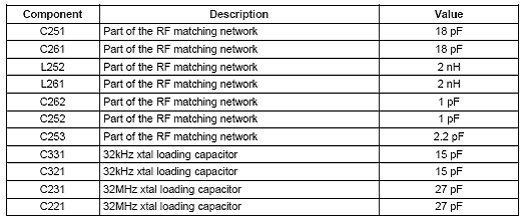

外接元件表(不包括电源去耦电容):

CC2530EMK评估模块套件

The CC2530 Evaluation Module Kit contains two CC2530 Evaluation Modules, which can be used either as standalone modules (requires external power) or connected to e.g. the SmartRF05EB Evaluation Boards (not included in kit) for full control from the PC. The evaluation modules can be used as a reference module for prototyping and for verifying the performance of the CC2530 RF IC. The CC2530 RF SoC enables both consumer and industrial grade applications by offering state-of-the-art selectivity/co-existence, excellent link budget, operation up to 125℃ and low voltage operation.

Features

The CC2530EMK includes:

2 x CC2530EM Evaluation Modules

2 x 2.4 GHz Antennas

Documentation

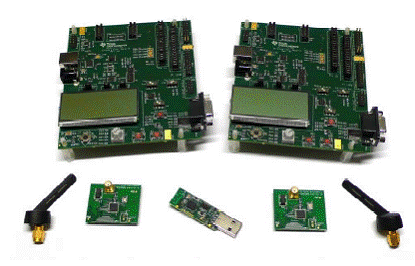

图3.CC2530EMK评估模块外形图

Please refer to the following pages for the schematics for

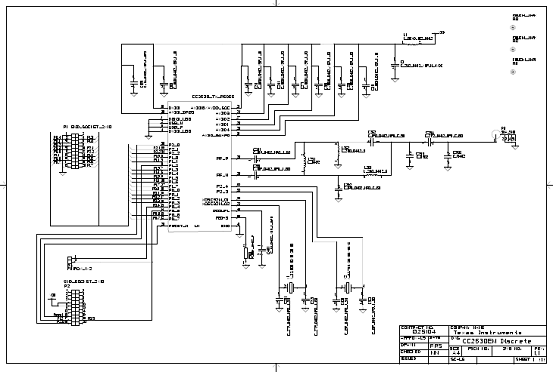

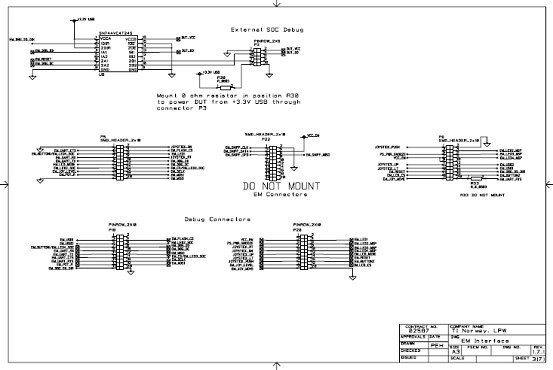

CC2530 Evaluation Module

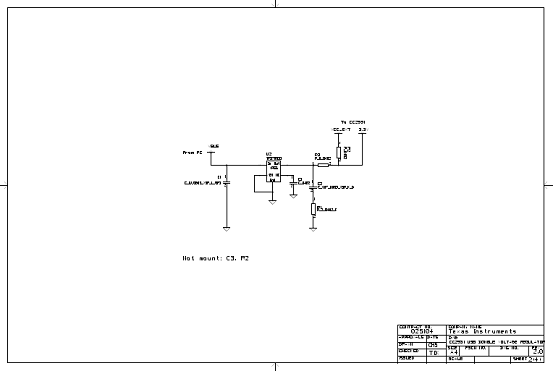

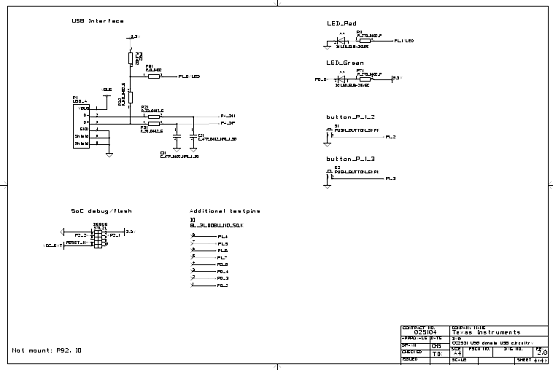

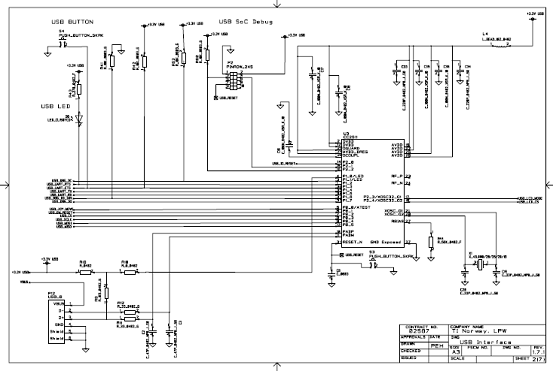

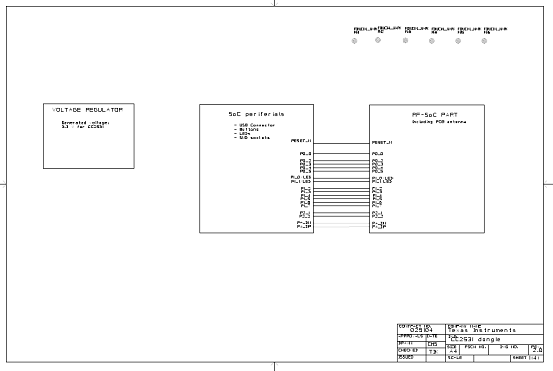

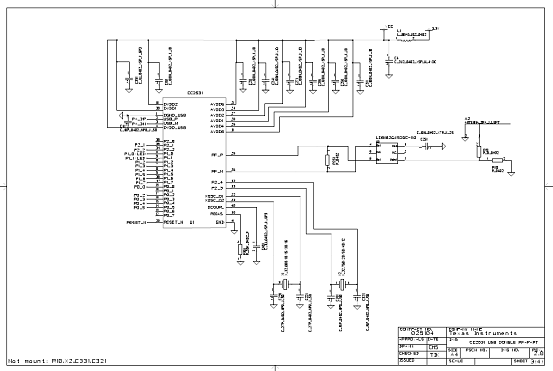

CC2531 USB Dongle

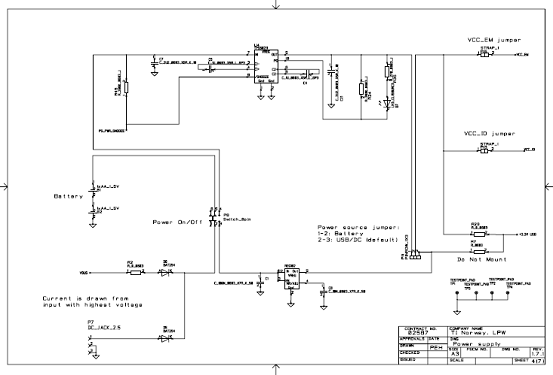

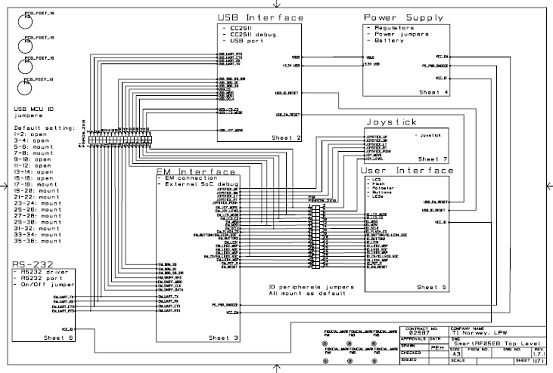

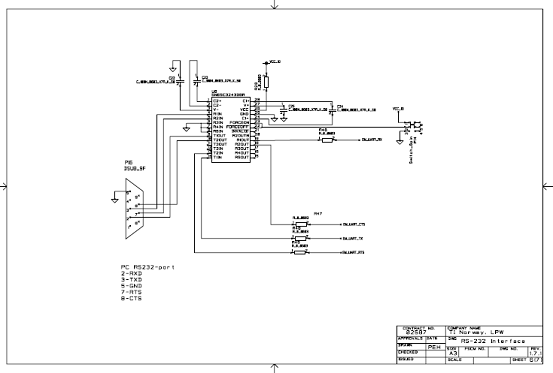

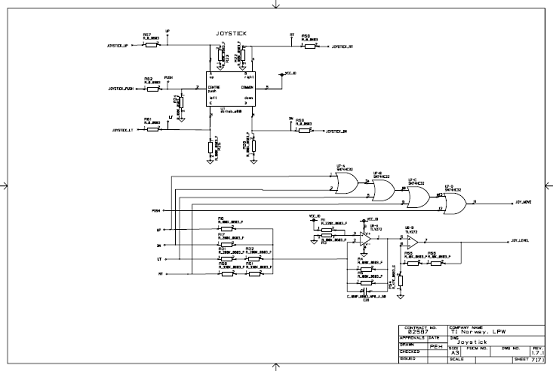

SmartRF05 Evaluation Board
